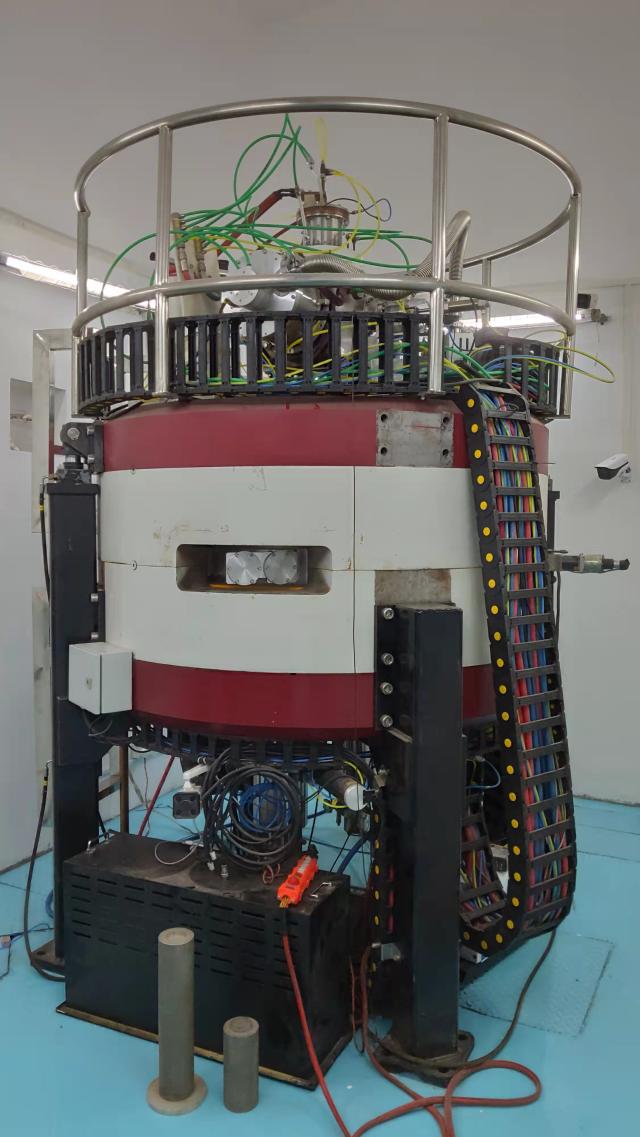

Cyclotron
Cyclotron system
|
Type |
CYCIAE-14 |
|---|---|
|
Manufacturer |
China Institute of Atomic Energy (CIAE) |
|
Maximum beam energy |
14.6MeV |
|
Beam injection |
Axial injection |
|
Beam extraction |
Carbon foil striping |
|
Beam line |
2/4 |
|
Accelerated/extracted beam |
H−/H+ |
|
Extracted beam energy |
14–14.6MeV |
|
Beam intensity |
100μA |
|
On target beam spot |
8mm×8mm |
Target System
- Liquid Target system
- Gas Target system
- STID system
- Quick-release Solid Target
- Powder Target
- ……
Available Nuclides
- C-11
- F-18
- Cu-64
- Y-86
- Zr-89
- ……

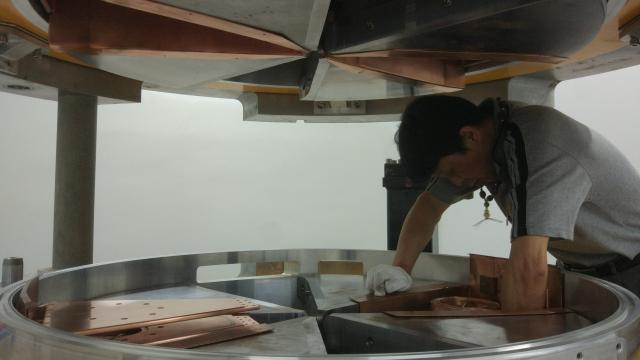

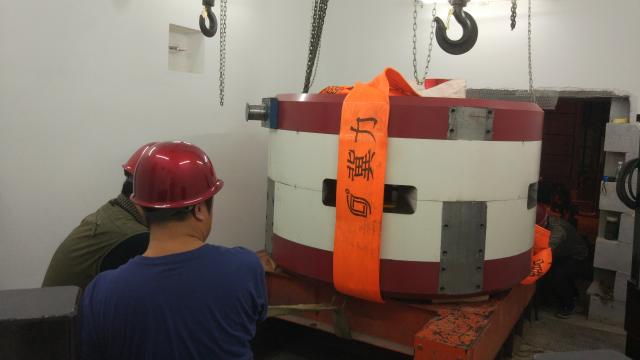

A Few Records
